Genuine OEM Kayaba Motorcycle Suspension Parts: 162019000101
Honda 2009-2021 CRF 250
Honda 2009-2020 CRF 450

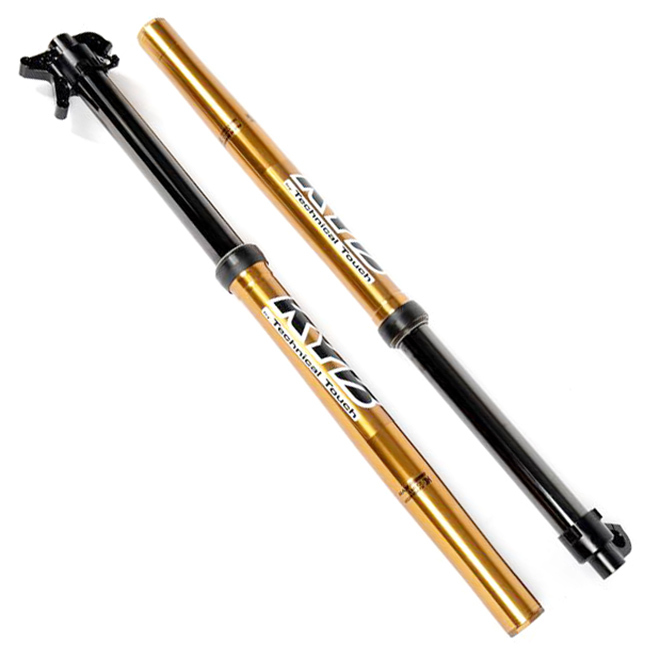

The Kayaba Factory Kit Coil Spring Fork with it's air-oil separated closed cartridge is well known in the motocross world for it's precise damping setup - personally customized by our experienced MX specialist tuners in Belgium.
With all anodized internal parts and DLC-coated inner tubes the internal friction is reduced to the absolute minimum.
By adding a mid-speed valve the fork can be adjusted over a much broader range.
A custom spring collar also supports the end of the stroke for a softer landing.
Please Note: No triple clamps included - This kit will not fit stock fork clamps.
Features:
- Air-Oil Separated Closed Cartridge
- Dark Grey Anodized AOS Fork Top Caps
- Kashima Coated Outer Tubes
- Billet CNC Machined & Anodized Front Axle Brackets
- DLC Coated Inner Tubes
- Minimal Internal Friction
- New Free Piston & Custom Aluminium Spring Collar
- Wide Damping Adjustment Range
Package Contents:
- 160754803501 - Kashima Coated Outer Fork Tube - CRF450 12- x 2
- 110910000101 - Outertube Snap Ring x 2
- 110024800101 - 48mm Front Fork Dust Seal x 2
- 110014800601 - 48mm Front Fork Scraper Seal x 2
- 110784800101 - 48mm Front Fork Snap Ring x 2
- 110014800501 - 48mm Front Fork Oil Seal - CRF 15-16 / YZ450F 18- / YZ250F 19- x 2
- 110770000701 - 48mm Front Fork Washer next to Oil Seal - YZ 08 (ALU) x 2
- 110770001301 - 48mm Front Fork Washer next to Oil Seal (Nylon) x 2
- 110034800101 - 48mm Front Fork Metal Piston x 2
- 110044800201 - 48mm Front Fork Metal Slide Bush 15mm High x 2
- 160174803001 - DLC Inner Tube 592mm Length - KX 09- x 2
- 110790000501 - M6 x 6 Front Fork Innertube Securing Grub Screw x 2
- 161000000101 - Rubber under M6 Securing Screw x 2
- 160794800501 - Front Fork Oil Lock Case Complete - KX450F 11-12 x 2
- 110860000101 - Front Fork Spring Collar Guide Bushing - YZ 06-07 x 2
- 110770001201 - Spring Seat for Fork Spring Collar x 2
- 160060003001 - Front Fork Cylinder Assembly - KXF 16- / CRF 19- / KTM 16- w/TT spec x 2
- 160060002901 - Compression Base Valve Assembly with 22 N/mm Pressure Spring x 2
- 110830000301 - Front Fork Rebound Adjuster x 2
- 60012029 - Left Axle Bracket - CRF250 19- / CRF450 19-20 x 1
- 60012028 - Right Axle Bracket - CRF250 19- / CRF450 19-20 x 1
- 60023000 - 28mm Aluminium Spring Collar x 2
- 000.0121 - Outer Tube Plastic Protection Set - KX / KTM / Husky / RM / CRF x 1
Warranty covers defect in material and workmanship in the KYB product. KYBs sole and exclusive obligation under this warranty is limited to the exchange/replacement of a defective KYB product in accordance with this limited warranty. There is no warranty on vehicles used in competition or used in a competition like manner.
SKU | 162019000101 |
Brand | KYB Factory Suspension Kits |
Shipping Weight | 14.5000kg |
Shipping Size | 0.400 x 0.150 x 1.200m |
Unit Of Measure | Each |
Type | KYB Factory Front Fork |
Format | No Format Defined |
If your Motorcycle is listed below, this product will suit:
