Genuine OEM Kayaba Motorcycle Suspension Parts: 162019000601
Yamaha 2008-up YZ (2 Stroke)

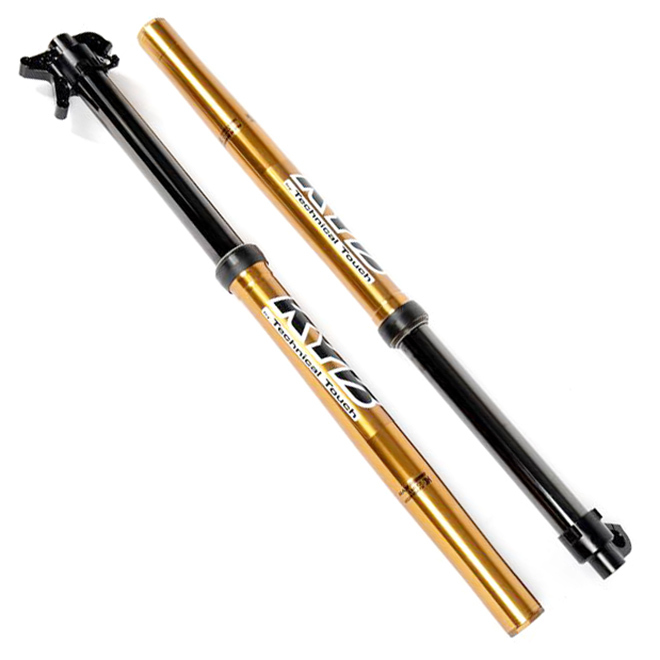

The Kayaba Factory Kit Coil Spring Fork with it's air-oil separated closed cartridge is well known in the motocross world for it's precise damping setup - personally customized by our experienced MX specialist tuners in Belgium.
With all anodized internal parts and DLC-coated inner tubes the internal friction is reduced to the absolute minimum.
By adding a mid-speed valve the fork can be adjusted over a much broader range.
A custom spring collar also supports the end of the stroke for a softer landing.
Features:
- Air-Oil Separated Closed Cartridge
- Dark Grey Anodized AOS Fork Top Caps
- Kashima Coated Outer Tubes
- Billet CNC Machined & Anodized Front Axle Brackets
- DLC Coated Inner Tubes
- Minimal Internal Friction
- New Free Piston & Custom Aluminium Spring Collar
- Wide Damping Adjustment Range
Package Contents:
- 160794810501 - DLC Inner Tube - YZ250F 08-11 / YZ 2-Stroke / Gas Gas 18-20 x 2
- 161000000101 - Rubber under M6 Securing Screw x 2
- 110790000501 - M6 x 6 Front Fork Innertube Securing Grub Screw x 2
- 110024800101 - 48mm Front Fork Dust Seal x 2
- 110014800601 - 48mm Front Fork Scraper Seal x 2
- 110784800101 - 48mm Front Fork Snap Ring x 2
- 110014800301 - 48mm Front Fork Oil Seal 1-Spring (KX450F 06-12) x 2
- 110770000701 - 48mm Front Fork Washer next to Oil Seal Aluminium - YZ 08 x 2
- 110044800201 - 48mm Front Fork Metal Slide Bush 15mm High x 2
- 110034800101 - 48mm Front Fork Metal Piston x 2
- 160754804401 - Kashima Coated Outer Fork Tube - YZ 2-Stroke 06- / YZ250F 10-11 x 2
- 110910000101 - Outertube Snap Ring x 2
- 110860000101 - Front Fork Spring Collar Guide Bushing - YZ 06-07 x 2
- 110770001201 - Spring Seat for Fork Spring Collar x 2
- 160060003201 - Front Fork Cylinder Assembly - YZ 2-Stroke 13- w/TT spec x 2
- 160060002801 - Compression Base Valve Assembly with 20 N/mm Pressure Spring x 2
- 110830000301 - Front Fork Rebound Adjuster x 2
- 160174803401 - Front Fork Oil Lock Case Complete - YZ250F / YZ450F / YZ 125-250 12- x 2
- 110790000401 - Axle Bracket Oil Lock O-Ring x 2
- 110930000201 - Front Fork Axle Bracket Bolt x 4
- 110794807701 - Left Axle Bracket - YZ 125/250 10-14 / YZ450F 10-13 x 1
- 110794807601 - Right Axle Bracket - YZ 125/250 10-14 / YZ450F 10-13 x 1
- 60023000 - 28mm Aluminium Spring Collar x 2
- 000.0379 - Outer Tube Plastic Protection Set - Yamaha (All) x 1
SKU | 162019000601 |
Brand | KYB Factory Suspension Kits |
Shipping Weight | 14.5000kg |
Shipping Size | 0.400 x 0.150 x 1.200m |
Unit Of Measure | Each |
Type | Factory Front Fork |
If your Motorcycle is listed below, this product will suit:
- FANTIC XE125 2021
- FANTIC XE125 2022
- FANTIC XE125 2023
- FANTIC XE125 2024
- FANTIC XE125 2025
- FANTIC XX125 2021
- FANTIC XX125 2022
- FANTIC XX125 2023
- FANTIC XX125 2024
- FANTIC XX125 2025
- FANTIC XX250 2021
- FANTIC XX250 2022
- FANTIC XX250 2023
- FANTIC XX250 2024
- FANTIC XX250 2025
- YAMAHA YZ125 2006
- YAMAHA YZ125 2007
- YAMAHA YZ125 2008
- YAMAHA YZ125 2009
- YAMAHA YZ125 2010
- YAMAHA YZ125 2011
- YAMAHA YZ125 2012
- YAMAHA YZ125 2013
- YAMAHA YZ125 2014
- YAMAHA YZ125 2015
- YAMAHA YZ125 2016
- YAMAHA YZ125 2017
- YAMAHA YZ125 2018
- YAMAHA YZ125 2019
- YAMAHA YZ125 2020
- YAMAHA YZ125 2021
- YAMAHA YZ125 2022
- YAMAHA YZ125 2023
- YAMAHA YZ125 2024
- YAMAHA YZ125 2025
- YAMAHA YZ250 2006
- YAMAHA YZ250 2007
- YAMAHA YZ250 2008
- YAMAHA YZ250 2009
- YAMAHA YZ250 2010
- YAMAHA YZ250 2011
- YAMAHA YZ250 2012
- YAMAHA YZ250 2013
- YAMAHA YZ250 2014
- YAMAHA YZ250 2015
- YAMAHA YZ250 2016
- YAMAHA YZ250 2017
- YAMAHA YZ250 2018
- YAMAHA YZ250 2019
- YAMAHA YZ250 2020
- YAMAHA YZ250 2021
- YAMAHA YZ250 2022
- YAMAHA YZ250 2023
- YAMAHA YZ250 2024
- YAMAHA YZ250 2025
