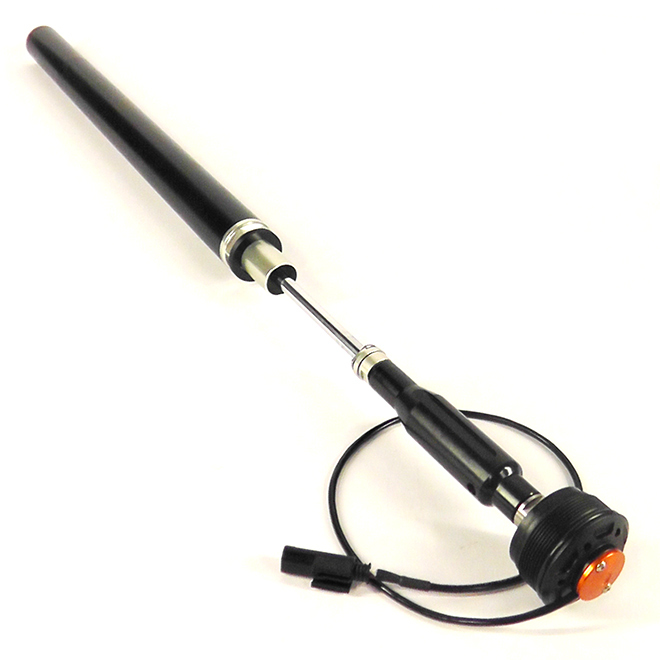

Plug & Play Dynamic ESA Closed Cartridge - One Fork Leg only - use OEM spring - No Springs Included

These electronically controlled fork cartridges are plug and play - plugging into the motorbike with the original connector. No need for cancelation kits or other modifications to the bike or to it's wiring harness - ensuring that the original controls on the handlebar remain operational. The motorcycle's control unit does not notice electrical differences between the original damping valve and the Tractive DDA (Dynamic Damping Adjustment) valve - even though it has a larger adjustment range and adjusts faster than the original OEM valve.

Extreme Electronic Closed Fork Cartridges featuring:

  • Electronically Controlled Compression Damping Adjustment
  • Electronically Controlled Rebound Damping Adjustment
  • 12mm Spring Preload Adjustment on both Fork Legs
  • Top Out Spring for added grip under acceleration
  • Hydraulic End Stops to prevent bottoming on landing
  • De-Aeration Screws in Fork Caps to release oil foam and air
  • Easily opened for servicing and tuning
  • Wide range of available spring rates for each model


These top of the line cartridges fit right into the fork legs without modifications to the fork. Developed initially in close cooperation with rally riders and world traveling adventure riders needing durability - they give much improved offroad grip while retaining comfort over the whole suspension stroke. We have since applied the same stable and finely controlled damping behaviour to road/race applications too.

The closed cartridge design means that the cartridge acts as a separate pressurised shock absorber inside the fork with its own damping oil for optimal handling. A big part of their success is due to the massive 35mm piston diameter - the largest used by any aftermarket fork cartridge. The high oil flow combined with the large volume makes for long-lasting stability and handling. The size of the internal bore also allows the use of electronic adjusters for our ESA replacement shocks.

Inside the cartridge are top out springs that create an easier moving fork for accelerating out of corners - resulting in better grip over more of the suspension stroke and prevents the bike from going into a headshake.

This cartridge product contains the FSAD stabilising module - which delays the onset of chattering and gives the rider more control overall. The Frequency Selective Active Damping system actively removes the vibrations corresponding with the natural frequencies of the tyre. It is essentially a tuned mass damper with a mass-spring rate system designed to the tire vibrations. This product is meant for the pro rider - and for those customers it will be a stark difference to a cartridge without - instilling confidence and allowing for later braking and earlier accelerating.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
TracTive Plug & Play ESA shocks are specially designed for the original BMW ESA equipment. They replace only the dampers, and requires the harvesting of the OEM Rear Preload Adjuster and springs.
SKU 35BM15-P8072-PNP-OR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.900m
Unit Of Measure Set
Type eX-CHANGE
Position (Front or Rear) Front
Damping Adjustment Type Electronic
Length Change (mm) Standard
Series X-CHANGE ESA
