KTM and Husqvarna WP48 Air to Spring Conversion Kit
The perfect upgrade for Husqvarna models 2021-2023 equipped with WP48 AER forks as standard. This kit is specifically designed to fit Husqvarna's FC, TC, TX, and FX bikes. If your bike comes with WP AER48 forks as original equipment, this conversion kit is an excellent choice.
Say goodbye to the hassle of adjusting air pressure and experience a significant improvement in front-end feel, corner entry, and ride quality over long distances. The kit eliminates the need for air pressure adjustments and provides a more consistent spring rate for a smoother ride. Don't let variable pressure ruin your ride - upgrade to the KTM and Husqvarna WP48 Air to Spring Conversion Kit today.
Spring Preload adjustable via a 22mm hex on top without any disassembly
Our WP Air to spring conversion kit is a complete replacement cartridge assembly for your current WP AER setup. It is designed to completely remove all the Air system from your current WP AER 48 fork and replace it with a preload adjustable spring and cartridge setup. High Quality German Engineered ‘Eibach’ Springs are available to suit varying rider weights. Please advise upon order which spring you require (see recommendations below) or let us know your weight and speed and we will recommend the best spring for you. This kit fit's in minutes. If you can pull down and service your fork seals on the WP AER 48 fork you can install this kit. Info and instruction included.
Spring Rate Recommendation
250F and 2 Strokes
KG | LBS | Recommended Spring Rate | Pro or A grade |
<60kg | <130 | 0.80 kg/mm | 0.84kg/mm |
60-65kg | 130 -140 | 0.84kg/mm | 0.88kg/mm |
65-75kg | 140-165 | 0.88kg/mm | 0.92kg/mm |
75-85kg | 165-185 | 0.92kg/mm | 0.96kg/mm |
85-95kg | 185-205 | 0.96kg/mm | 1.00kg/mm |
95-100kg | 205-220 | 1.00kg/mm | 1.04kg/mm |
100-110kg | 220-240 | 1.04kg/mm | 1.08kg/mm |
110kg+ | 240+ | 1.08kg/mm | 1.08kg/mm |
450F
KG | LBS | Recommended Spring Rate | Pro or A grade |
<60kg | <130 | 0.84 kg/mm | 0.84kg/mm |
60-65kg | 130 -140 | 0.88kg/mm | 0.88kg/mm |
65-75kg | 140-165 | 0.92kg/mm | 0.96kg/mm |
75-85kg | 165-185 | 0.96kg/mm | 0.98kg/mm |
85-95kg | 185-205 | 1.0kg/mm | 1.04kg/mm |
95-100kg | 205-220 | 1.04kg/mm | 1.04kg/mm |
100-110kg | 220-240 | 1.04kg/mm | 1.08kg/mm |
110kg+ | 240+ | 1.08kg/mm | 1.08kg/mm |
General riding & Motocross applications
These recommendations are a guide only as fork Springs are weight and speed dependent. For example a 72 kg Pro rider falls into the 0.88kg/mm category but may well be better suited to a 0.92kg spring due to the much higher corner entry speed and the ability to hit large bumps at high speeds. Please note this guide is for rider weight ‘without’ gear.
Please note we have had great results using one spring down for Veteran/ C level riders on the 450 machines. Eg. 90kg rider running a 0.96kg/mm spring for a plusher ride.
For more accurate advice please consult your local suspension tech or send us an email.
Rider weight Spring Recommendation ( Pro Level riders may consider one rate harder than recommended due to the faster speed and need for 'hold up')
Key Features
- Never have to set your air pressure ever again.
- Much more reliable fork
- Super smooth action resulting from our tested spring guidance system.
- Hydraulic Bottoming resistance using our tapered bottoming piston and seat.
- No Fade out or pump up in pressure over long moto’s
- A Constant feel in your front end that is more consistent throughout the ride
- Spring Pre load adjustable
Minimal tools are required for fitment. If you have the Fork cap and basic tools to remove the standard OEM Air cartridge you will have the ability to fit up our kit. Our cartridge kit is made from High grade 6061 Aircraft Grade Alloy , Chrome Moly rods and Anodised for a Factory Finish. Instruction manual included.

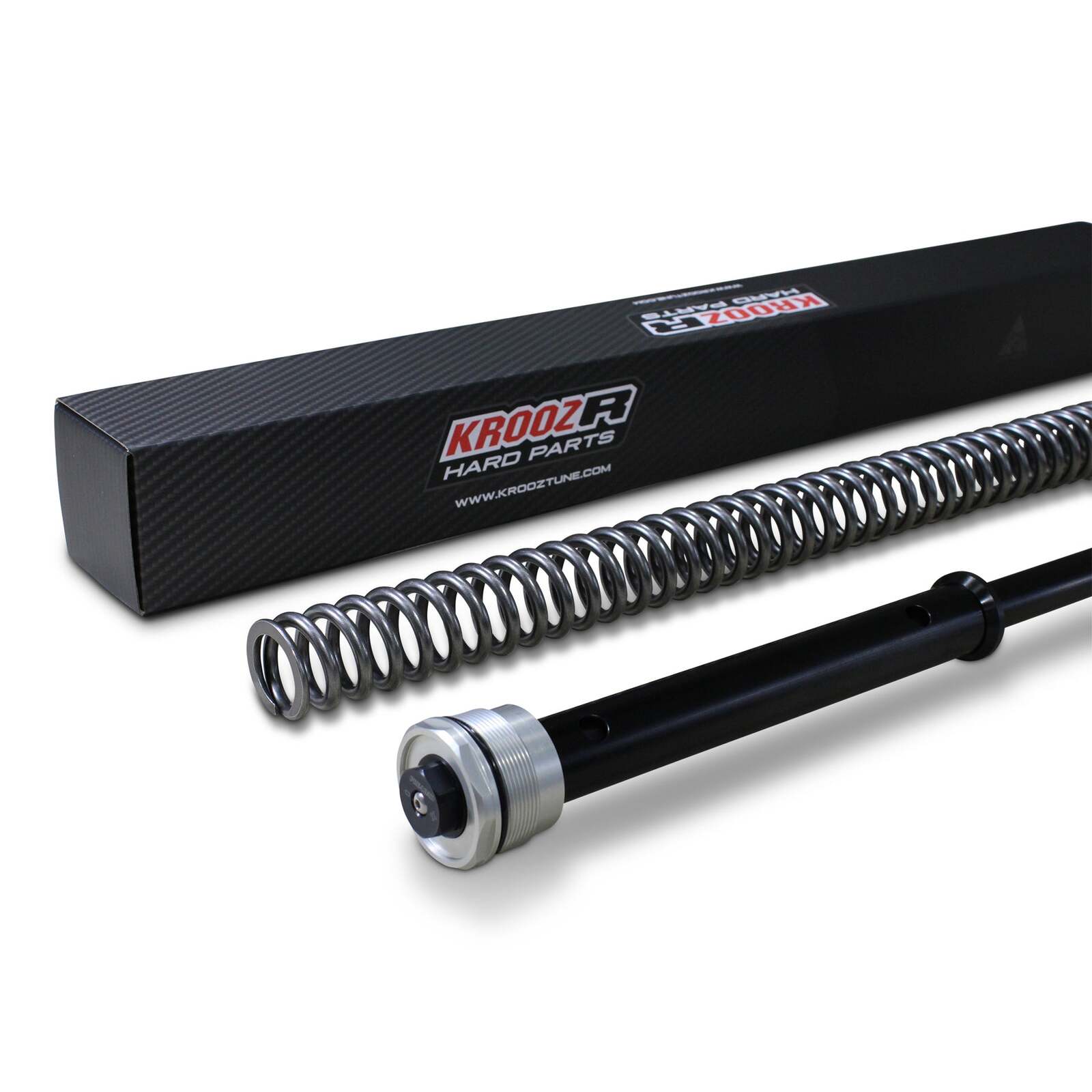

Parts included in the kit
- Fully Complete Cartridge assembly including Bottoming Cone and preload washers
- Optional Selected Teknik or Eibach spring to suit this kit
SKU | KT-WPATS-AER48-HSQ |
Brand | Krooztune |
Shipping Weight | 2.0000kg |
Shipping Size | 0.050 x 0.050 x 0.050m |
Unit Of Measure | ea |
Type | Air to Spring |
If your Motorcycle is listed below, this product will suit:
- HUSQVARNA FC250 2021
- HUSQVARNA FC250 2022
- HUSQVARNA FC250 2023
- HUSQVARNA FC350 2021
- HUSQVARNA FC350 2022
- HUSQVARNA FC350 2023
- HUSQVARNA FC450 2021
- HUSQVARNA FC450 2022
- HUSQVARNA FC450 2023
- HUSQVARNA FS450 2021
- HUSQVARNA FS450 2022
- HUSQVARNA FS450 2023
- HUSQVARNA FX350 Cross Country 2021
- HUSQVARNA FX350 Cross Country 2022
- HUSQVARNA FX350 Cross Country 2023
- HUSQVARNA FX450 Cross Country 2021
- HUSQVARNA FX450 Cross Country 2022
- HUSQVARNA FX450 Cross Country 2023
- HUSQVARNA TC125 2021
- HUSQVARNA TC125 2022
- HUSQVARNA TC125 2023
- HUSQVARNA TC250 2021
- HUSQVARNA TC250 2022
- HUSQVARNA TC250 2023
- HUSQVARNA TX125 2021
- HUSQVARNA TX125 2022
- HUSQVARNA TX125 2023
- HUSQVARNA TX300 2021
- HUSQVARNA TX300 2022
- HUSQVARNA TX300 2023
